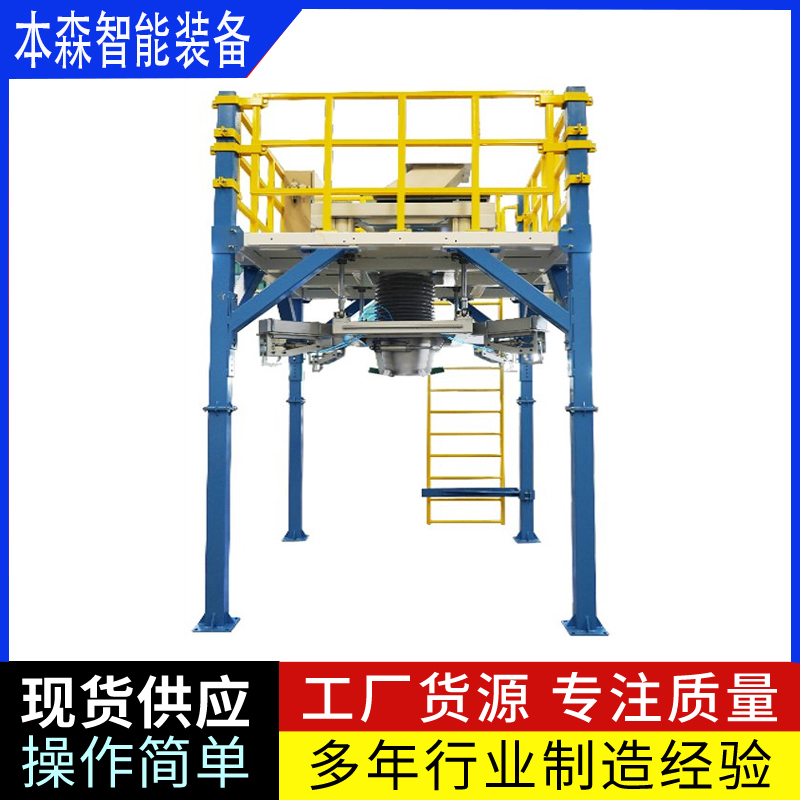

砂糖、种子颗粒吨袋包装机粉尘小智能包装秤一体机是一种高效、智能的包装设备，专为砂糖、种子等颗粒物料设计，具备粉尘小、智能计量和自动包装等多种优势。以下是对该设备的详细解析：

一、设备概述

该设备集自动计量、称重、灌装、封口于一体，能够高效完成砂糖、种子等颗粒物料的吨袋包装工作。通过智能化控制，实现精准计量和快速包装，同时减少粉尘产生，保护生产环境。

二、功能特点

1. 智能计量称重：

• 采用高精度称重传感器，确保每袋产品的重量准确无误。

• 可根据预设重量进行自动计量和灌装，减少人工干预，提高包装效率。

2. 粉尘控制：

• 设备配备有先进的粉尘收集系统，有效减少物料在包装过程中产生的粉尘。

• 粉尘外协量低，符合环保要求，保护生产环境和操作人员的健康。

3. 自动包装：

• 自动完成上袋、灌装、封口等包装工序，降低人工成本。

• 配备自动脱钩、自动落袋等装置，确保包装过程的连续性和稳定性。

4. 高效稳定：

• 设备运行稳定可靠，故障率低，能够长时间连续工作。

• 高效的包装速度能够满足大规模生产的需求。

5. 操作简便：

• 操作界面简单明了，易于上手。

• 配备完善的故障检测和报警系统，方便用户进行设备管理和维护。

三、技术参数（以某型号为例）

• 包装重量：500kg-2000kg

• 包装机效率：15-20袋/小时

• 称重精度：±2%-5%

• 喂料方式：螺旋喂料

• 设备材质：304不锈钢/201不锈钢/特氟龙喷涂/碳钢可选

• 电源/功率：380v/5.5kw

• 粉尘外协量：<20mg/m³

• 耗气量：根据具体型号和配置而定

四、应用领域

该设备广泛应用于食品、农业、化工等行业，特别适用于砂糖、种子等颗粒物料的吨袋包装。在食品行业中，可用于砂糖、食盐等调味品的包装；在农业行业中，可用于种子、化肥等物料的包装.

Sugar, seed granules ton bag packaging machine dust small intelligent packaging scale all-in-one machine is an efficient and intelligent packaging equipment, designed for granular materials such as sugar, seeds, etc., with a variety of advantages such as small dust, intelligent metering and automatic packaging. Here's a detailed breakdown of the device:

1. Equipment overview

The equipment integrates automatic measuring, weighing, filling and sealing, and can efficiently complete the ton bag packaging of granular materials such as sugar and seeds. Through intelligent control, accurate metering and fast packaging can be achieved, while reducing dust generation and protecting the production environment.

2. Functional characteristics

Smart Metering Weighing:

High-precision load cells are used to ensure that the weight of each bag of products is accurate.

Automatic metering and filling can be carried out according to the preset weight, reducing manual intervention and improving packaging efficiency.

Dust Control:

The equipment is equipped with an advanced dust collection system, which effectively reduces the dust generated by the material during the packaging process.

The amount of dust outsourcing is low, which meets the requirements of environmental protection and protects the production environment and the health of operators.

Automatic Packing:

Automatically complete the packaging processes such as bagging, filling, and sealing to reduce labor costs.

It is equipped with automatic decoupling, automatic bag drop and other devices to ensure the continuity and stability of the packaging process.

Efficient and stable:

The equipment runs stably and reliably, has a low failure rate, and can work continuously for a long time.

Efficient packaging speeds are available to meet the demands of mass production.

Easy to operate:

The operation interface is simple and straightforward, and it is easy to use.

Equipped with a complete fault detection and alarm system, it is convenient for users to manage and maintain equipment.

3. Technical parameters (take a model as an example)

Package weight: 500kg-2000kg

Packing machine efficiency: 15-20 bags/hour

Weighing accuracy: ±2%-5%

Feeding method: screw feeding

Equipment material: 304 stainless steel / 201 stainless steel / Teflon spraying / carbon steel optional

Power supply/power: 380V/5.5KW

Dust outsourcing amount: <20mg/m³

Air consumption: depending on the model and configuration

Fourth, the field of application

The equipment is widely used in food, agriculture, chemical and other industries, especially suitable for sugar, seeds and other granular materials ton bag packaging. In the food industry, it can be used for the packaging of sugar, salt and other condiments; In the agricultural industry, it can be used for the packaging of seeds, fertilizers and other materials.
